Lab 1: Initial Binary Analysis - Triage

First Steps

Download the program to analyze:

The first thing you can do to get a limited understanding of a program is just to look for strings! Developers leave log messages and print strings all over the place and so this can be very fruitful when your first trying to figure out what some random binary does. Use the strings command to view strings that are present inside the binary. Remember to use the -n flag to filter results to strings greater than or equal to the specified length.

Question

Based on some of the strings that you see, what is this program used for?

Using BinaryNinja

For the labs this week we will be using binaryninja’s free version which is already installed on your class VMs. You can find it in the Tools folder on your desktop. You can run it from the terminal with:

~/Desktop/Tools/binaryninja_free/binaryninja

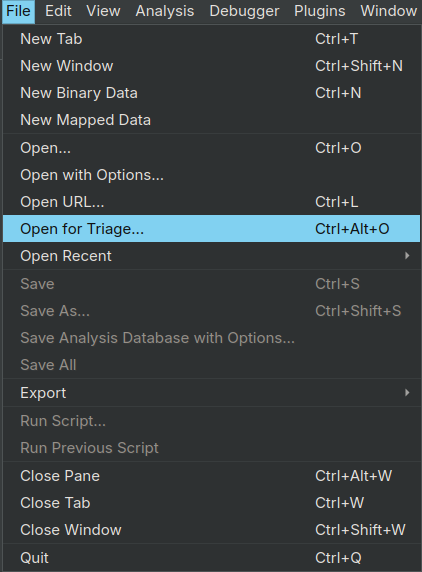

Once you get it open, select File > Open for Triage from the menu to open binary files for triage. Navigate to the file you downloaded earlier and double click to open it. Alternatively, you can drag and drop the file into binaryninja.

Explore the Triage window in binaryninja

Ignore the Symbols and Cross References view on the left side of binaryninja for now.

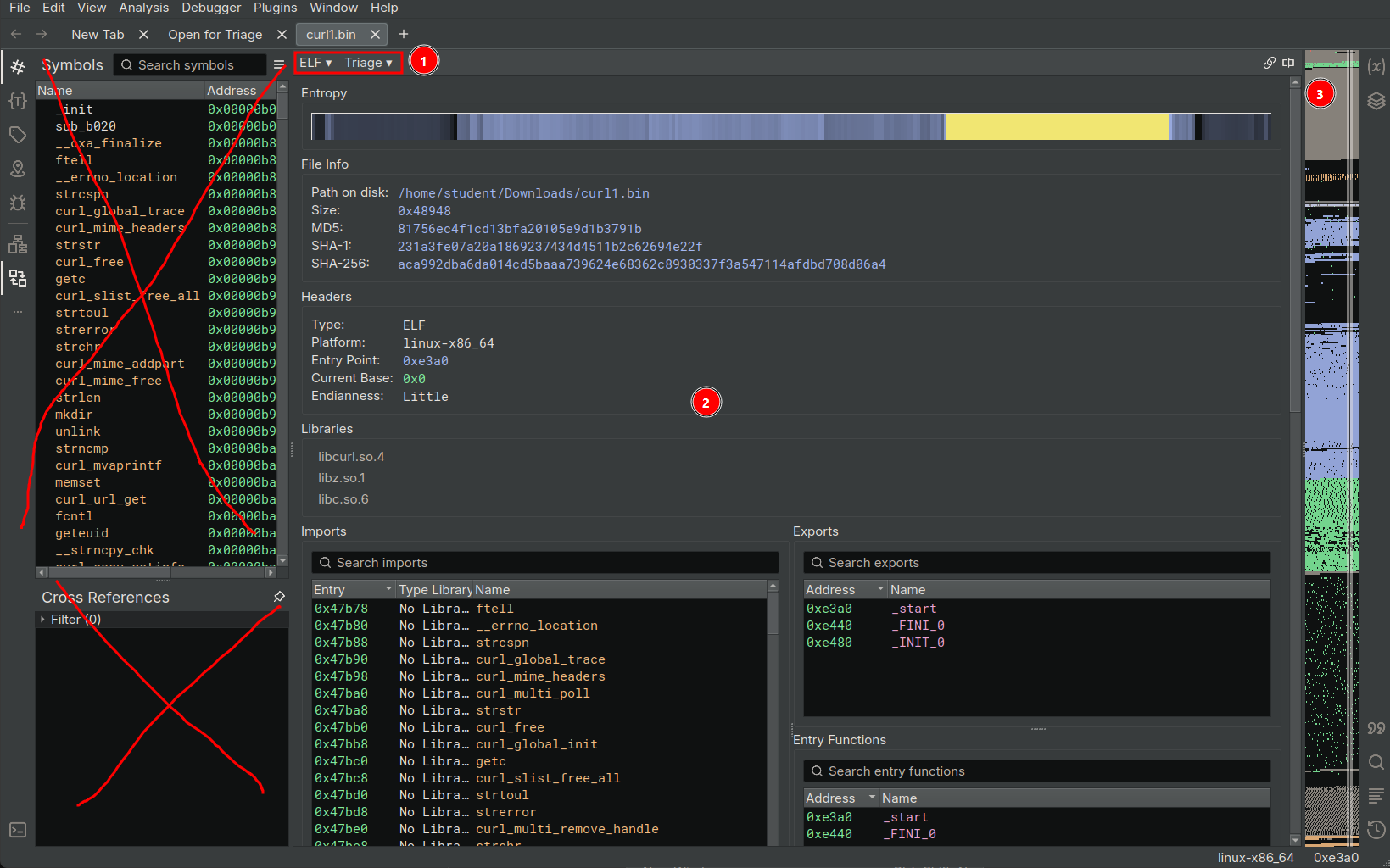

Reverse engineering tools do A LOT of things! But this means that the view can be a little overwhelming. Ignore the Symbols and Cross References panes on the left side of the screen. The three indicators in the above screenshot are:

1. View selection dropdowns. Use these to get back to the Triage view if you ever click something and it takes you to a different view.
2. This is the main triage window. Scroll down to see more stuff!
3. The far right-side shows an overview of the whole binary. You can also use this to navigate to other sections of the binary.

Because BinaryNinja understands the ELF file format, it has helpfully pulled out some information and displayed it in the main window. Notice how the entropy bar shows where different parts of the program have higher (yellow) and lower (dark blue) values of entropy.

Analyzing shared libraries

Review the loaded libraries. Compare this to the list when you run the ldd program on the curl1.bin binary from the terminal. A quick glance at the ldd man page shows that it “prints the shared object dependencies” of the specified program.

Question

Why do you think the list from ldd is different from what binaryninja reports?

HINT: Try running ldd on the libcurl.so.4 binary.

Do a quick google search on the libcurl.so.4 library to find out what kind of functionality it provides.

Question

Based on your search what do you think the curl binary uses libcurl for?

What functions in the imports table come from libcurl?

Examine Segments and Sections

Next lets look at the difference between sections and segments of an ELF binary. Do some research to figure out what the requested sections are used for.

Question

Describe the following sections: .text, .data, .bss, .got, and .plt

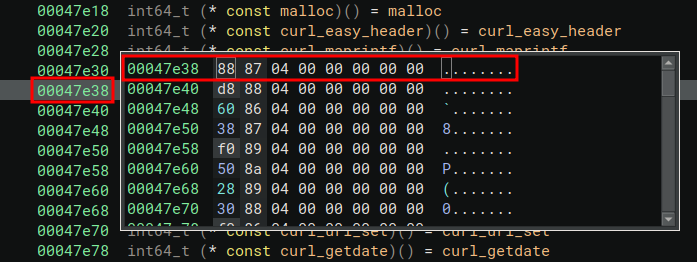

Next lets try to map some data that binaryninja shows us to the different sections of the binary. Double click on one of the imported functions to see what section it takes you to. Then hover your mouse over the memory address to see what bytes are listed there.

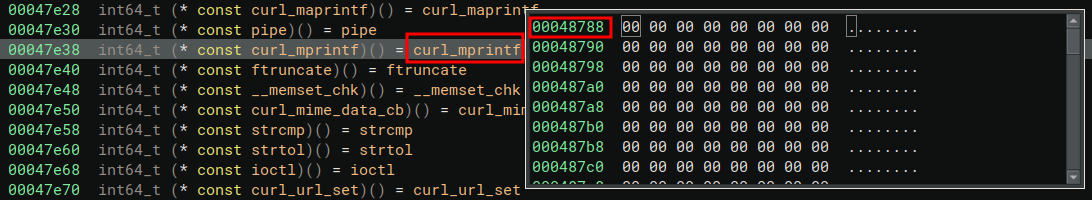

Then compare that to the address of the function name on the right hand side of the equals sign.

Question

Based on these two values is this a little-endian or a big-endian binary?

Using the Memory Map view

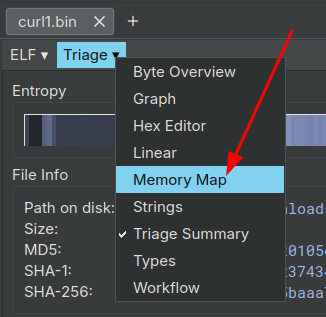

Use the memory map view to see how each section of the ELF file maps to a segment in memory. Switch to the new view using the drop down menu in the top left of the main view window.

Question

For each section you looked up earlier, what is the starting address of the segment that contains it?

Make comparisons with a different version of the curl binary

Download the second version of the curl binary and open it for triage in binaryninja. Compare triage views and note any differences between curl1.bin and curl2.bin.

Question

What is the reason for the differences in curl2.bin?

HINT: Compare the output of the file command on the two binaries.

Conduct a similar analysis as above

For part two, download or locate a small program compiled for both Windows and Linux.

Open each binary for triage in BinaryNinja, then answer the following questions:

Question

Note any differences in the Triage Summary for the two programs. Do they use the same shared libraries?

Question

Compare the segmentation/section layout between the two binaries in the Memory Map view. Are there more or less sections/segments in one program?

Question

Use the Strings view to find long string then double-click it to see what section it resides in. What section is this for each program?
