Lab 2: Understanding Executable File Formats

Outline

Get Familiar with the Intel Software Developer’s Manuals

The Intel® 64 and IA-32 Architectures Software Developer’s Manuals provide a comprehensive explanation of the Intel chip architecture and how to effectively write programs for their chips. They are extremely helpful for reverse engineering because they give a detailed breakdown of all the system components as well as every possibly assembly instruction. However, they are also incredibly dense so we’re going to break down some of the pieces you need.

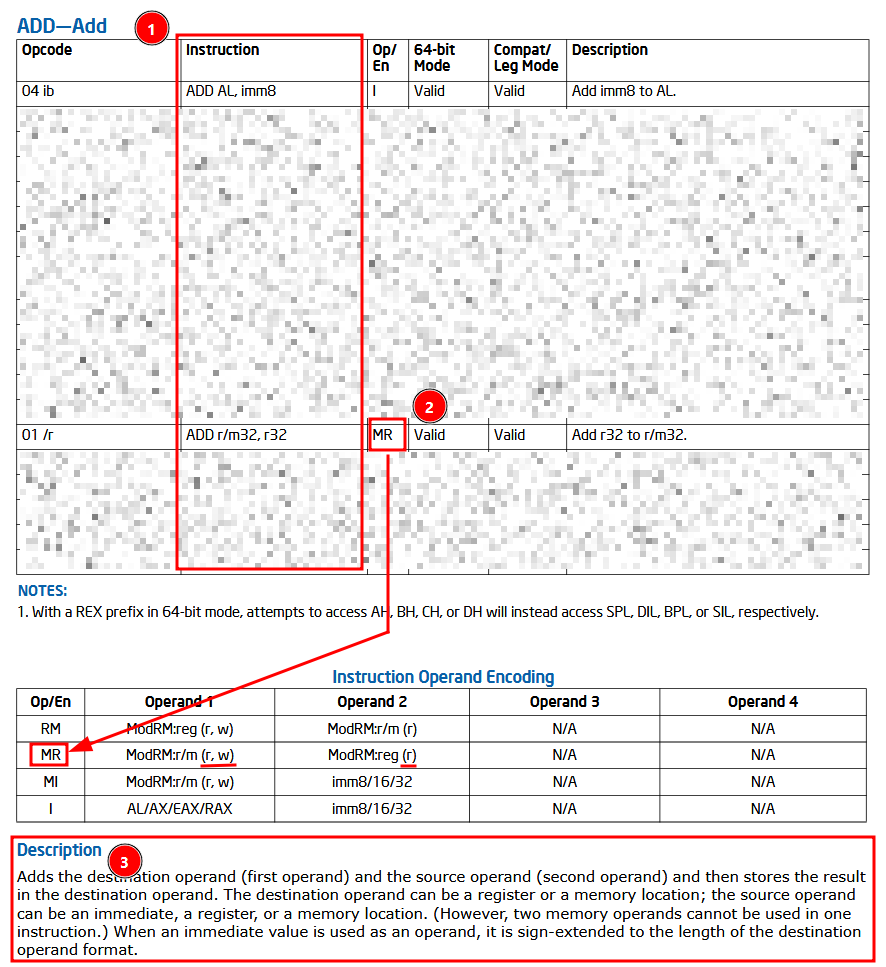

Lets start with the components of an assembly instruction by looking at page 132 of Vol. 2:

This breakdown shows some important information about the add instruction"

1. The Instruction column shows the various different formats that the add instruction can take. In the two rows not blurred out we can see:

   • ADD AL, imm8
   • ADD r/m32, r32

   In the first option the instruction will add an 8-bit “immediate” value to register AL and then store the result in register AL. In the second version the table is saying we can add a 32-bit contents of a register or memory address to the contents of another register and store it in the first location.

2. The second column to note is the Op/En column, which gives you a letter code to look up in the below Instruction Operand Encoding table.

   This table gives you a more detailed breakdown of what form each operand for the assembly instruction is allowed to take. Note that some operands are read/write while others are read-only.

3. Finally, there is the description at the bottom which is always worth reading and will explain what the assembly instruction does.

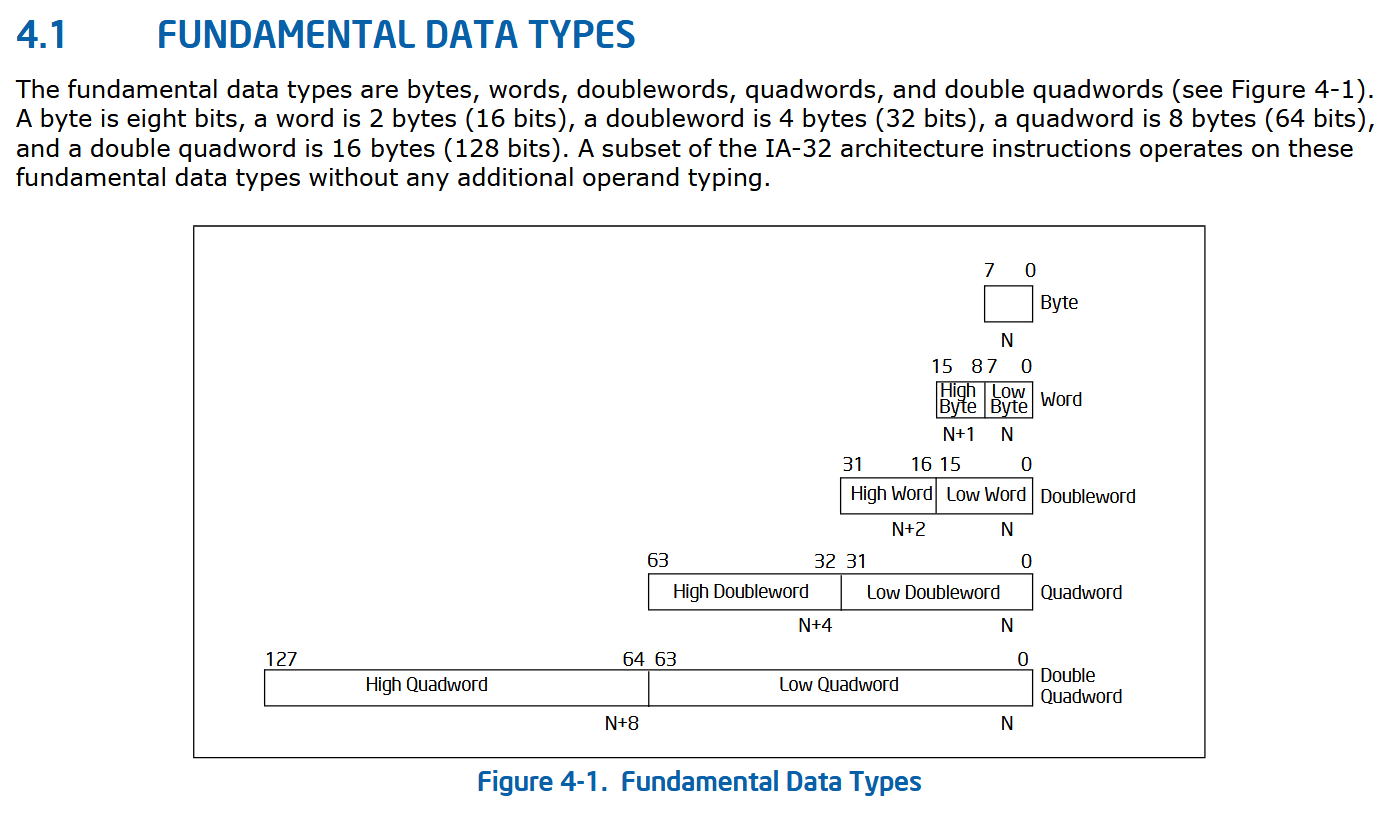

The other important thing to remember is the fundamental data types that assembly instructions operate on. You can learn more about this from Section 4.1 on page 87 of Vol. 1:

Review section 3.2 of Vol. 1 of the intel manuals.

Question

What is the size of the virtual address space in the “64-Bit Mode Execution Environment”?

Home many general purpose registers are available?

Intro Assembly with Hello World

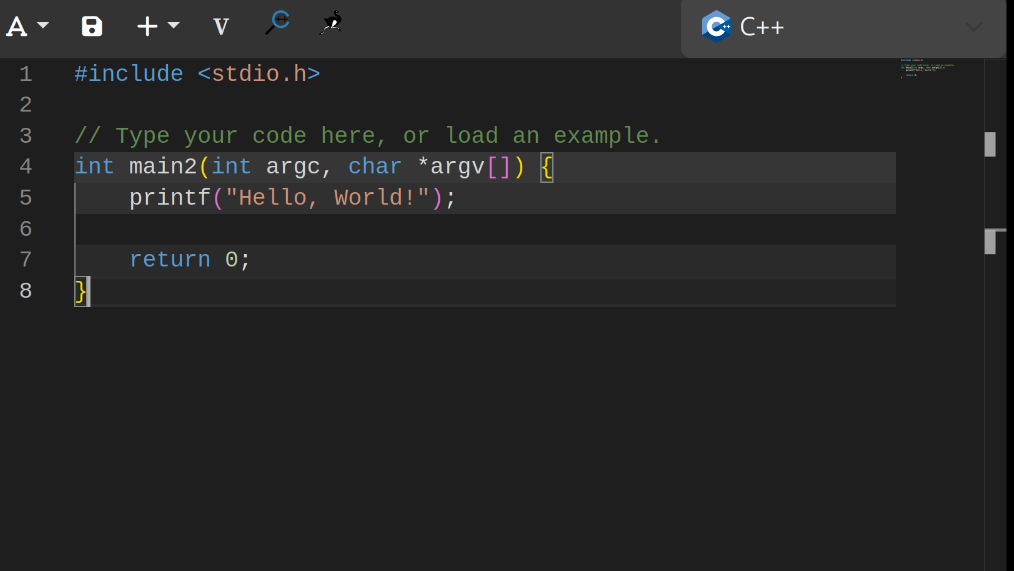

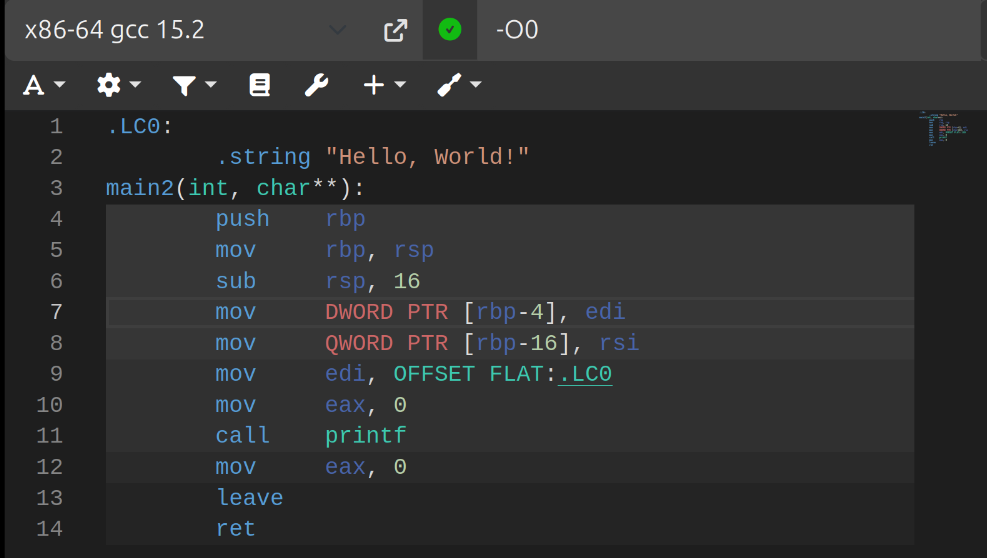

Now that you know how to look up stuff in the Intel Manuals, lets start analyzing some assembly code! Navigate to the program: Hello World on Godbolt

Question

What instructions do you see in this example? (mov, sub, etc.)

Hover over the lines to see what instructions correspond to the lines of source code.

Question

What register does the address of the string get put in? What line of the assembly code does this instruction happen on?

What instruction is used to go to the printf function?

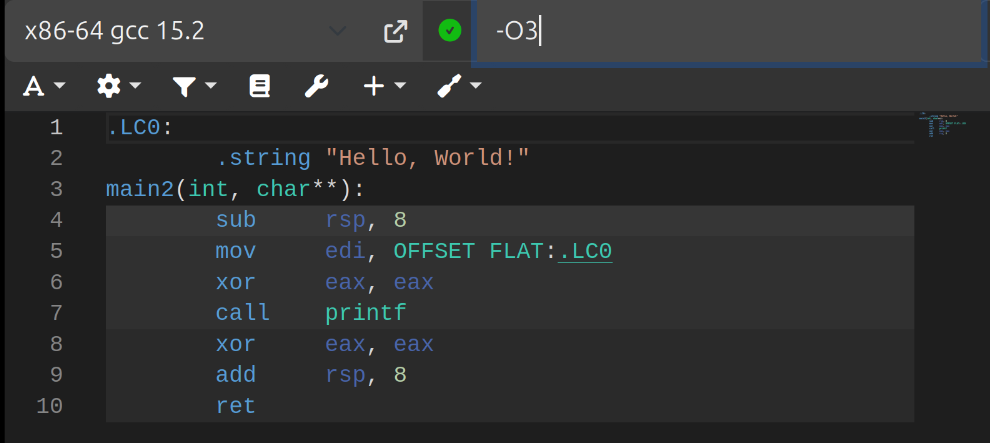

Note the differences in the optimized version:

Question

What changes about this code when the optimizations are increased?

Learn more instructions with the slope calculation example

The next example is meant to introduce you to a couple binary arithmetic instructions. Please navigate to the example code: Slope Calculation on Godbolt

Question

Give an explanation of how the assembly instructions are used to calculate the slope.

Read the imul instruction description. Which two registers are used for the calculation and where is the result stored?

Understanding control flow (first steps)

Analyze the assembly code in: Min Value Calculation on Godbolt

Try to trace the control flow (which branches the code takes or doesn’t take) by walking through the instructions.

Try to note how memory and registers are used in combination to keep track of the values of variables in the code. Assuming there is an address in the register RSP (lets say 0x7fff8000) answer the following questions:

Question

Explain how the values of the array are saved so that the min() function has access to them.

What register is used to keep track of the min variable?

Question

Explain what the cmova eax, edx instruction does.

Analyze a small C program with binaryninja

Start by downloading the first program we’ll be looking at:

Open the file using the default open option for binary ninja and click the dropdown to take you to the Triage Summary. Note in the Symbols pane on the left-hand side there are only a few functions in the .text section which is where the executable code for this binary is.

Question

Which of these functions do you think is the entry point of the program? Give a reason why.

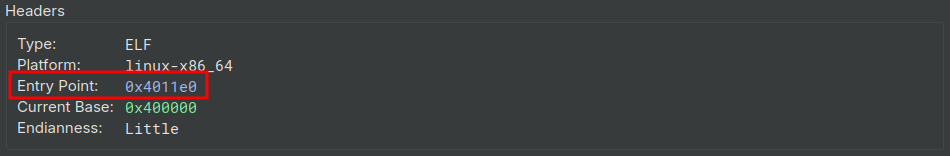

Next double-click on the Entry Point address in the Triage Summary pane. This will take you to the first function of the program.

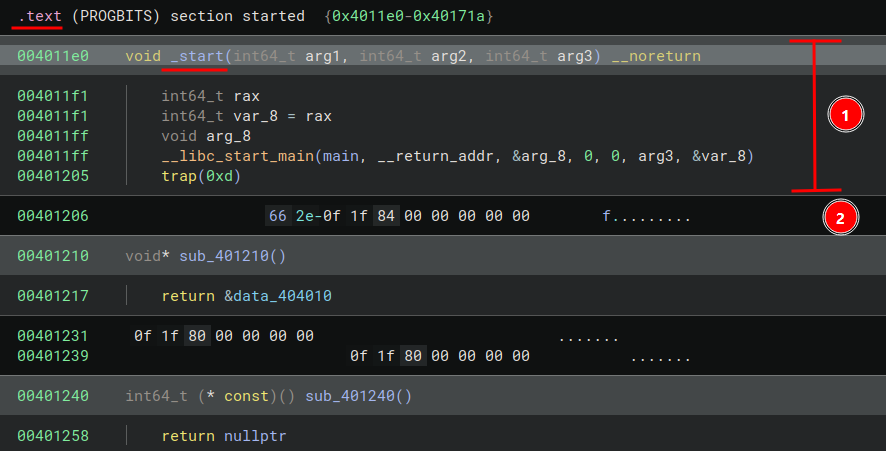

This will take you to binaryninja’s code view which by default starts off with their high-level level IL (intermediate language) view. This is the code that has been processed and analyzed by the tool so that it looks closer to a high level language like C or C++.

1. Binaryninja displays code in the lighter gray boxes.
2. The black bars in between the functions are areas of the .text section that were not picked up by the auto analysis as assembly code.

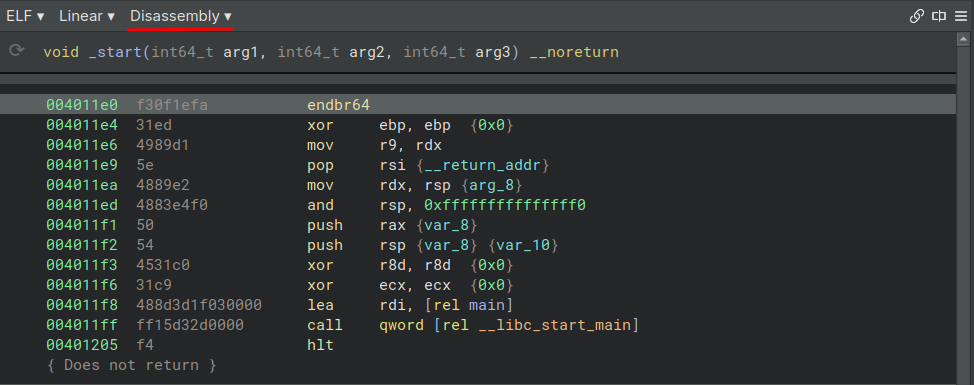

Switch to the ELF Disassembly view in binary ninja:

Question

What function is called inside of the code for the _start() function?

Google this function and explain what it is used for.

Tip

• Click the split view icon in the top-right to show both the HLIL version and the disassembly.
• Click the chain icon to toggle whether the two views are synchronized by address.

Analyzing the main function

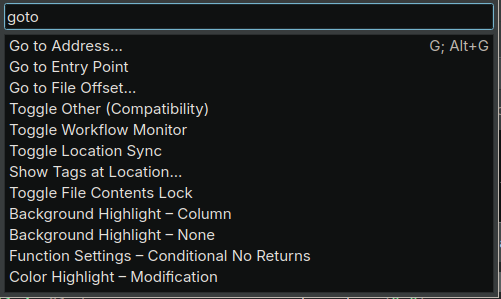

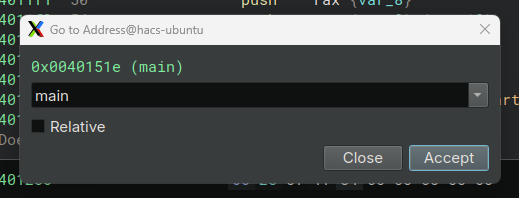

Next use ctrl+p to open the command menu and type goto to open the Goto Address pop up window in binaryninja. Alternatively, you can the g or alt+g keyboard shortcuts. Once the popup is up navigate to the main function.

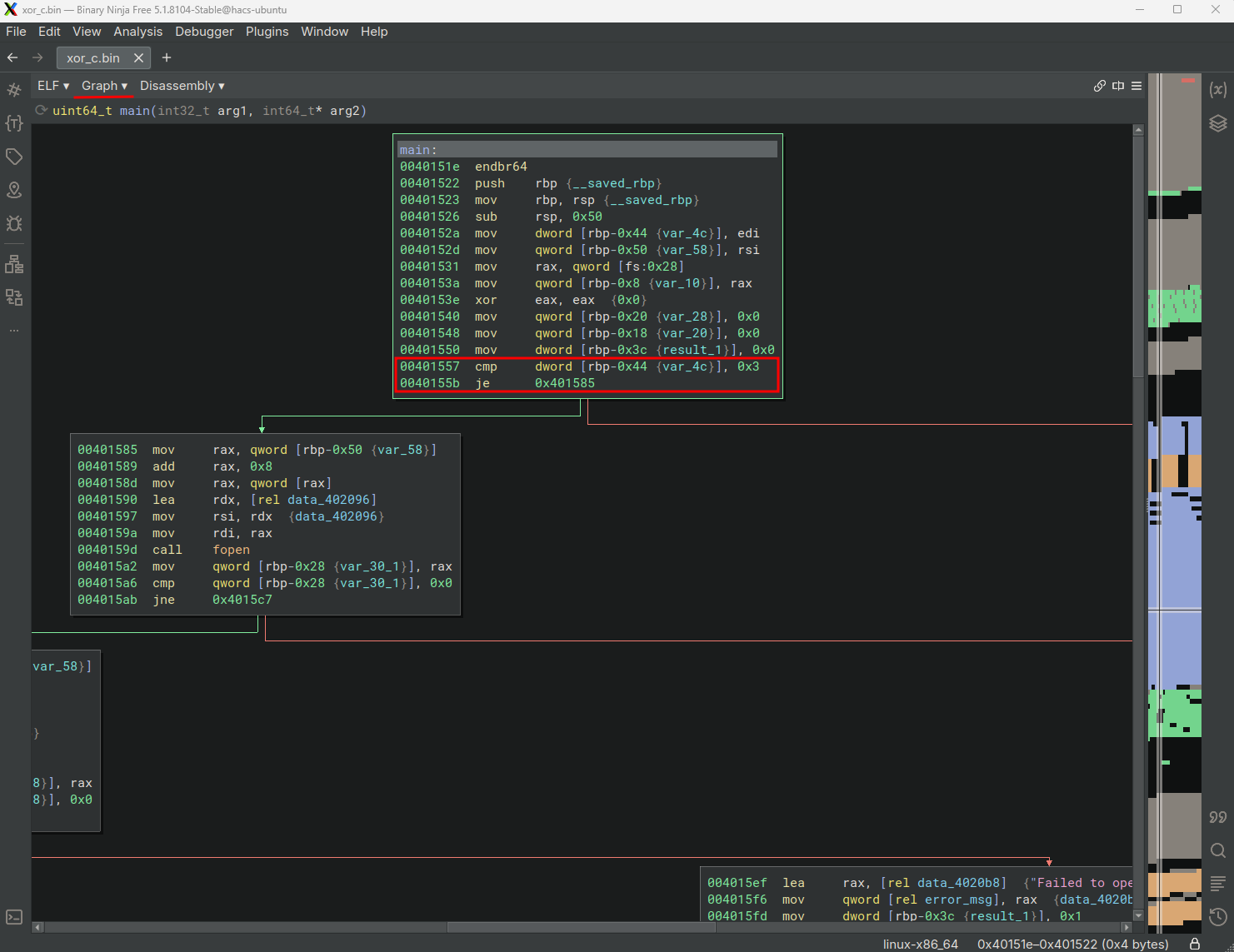

In the Linear disassembly view, it can be difficult to follow the control flow of the program, so you can use the spacebar keyboard shortcut to switch back and forth between the Linear and Graph views. You can also select this in the top left drop down menu.

Focus on the first comparison statement highlighted by the red box. Use the strings in following blocks of code to help you figure out what the comparison is doing. The green (left) arrows in the graph view correspond to when the jump instruction is taken. The red (right) arrows correspond to the jump not being taken.

Question

What is this comparison checking? Why is the number 3 important?

Rename variables and functions for better understanding

Switch back to the High Level IL (HLIL) view and clean up the code by renaming functions and variable based on what they look like they are being used for.

You can rename a variable by right clicking on it or by pressing the N keyboard shortcut. Work through each of the sub_40#### functions to figure out what they do.

Question

What is the address of the function that xors the file data?

What is the address of the assembly instruction that xors the data?

What is the key used to encrypt the data?

Learn how binaryninja is not a perfect tool

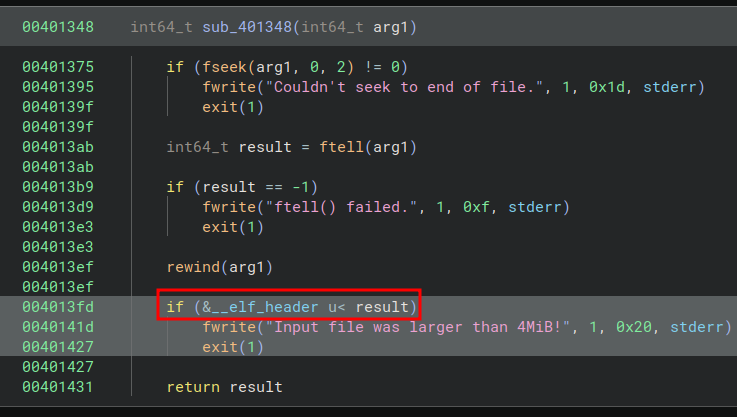

Here we can see that binja thinks the program is trying to compare a variable to the address of the very start of our ELF file (a.k.a the __elf__header). This seems kind of weird, especially given that we can see the an error string that doesn’t seem to be related. Let’s verify what the assembly is doing.

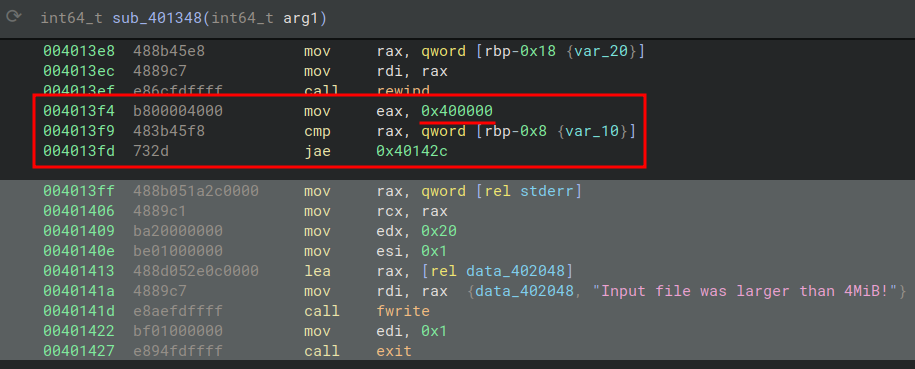

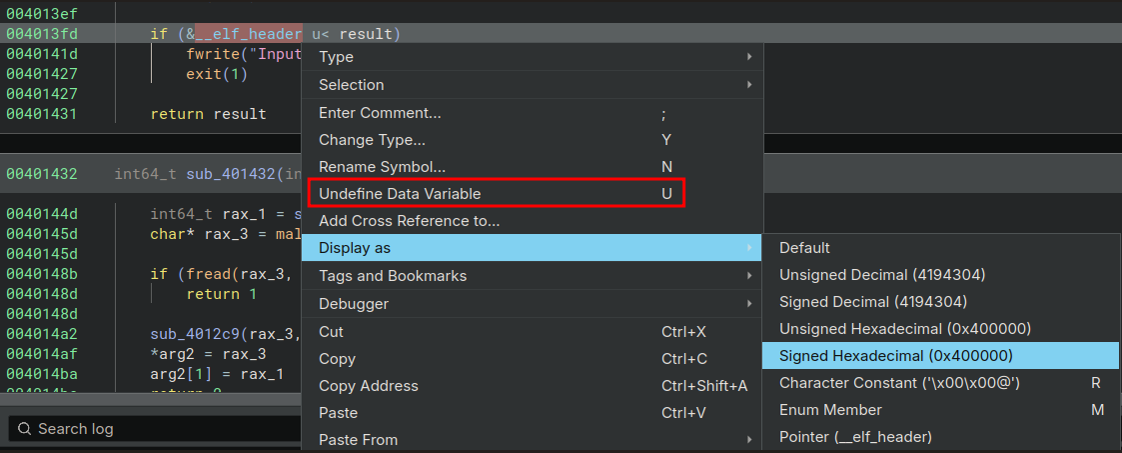

In the above screenshot, we can see that 0x400000 is being moved into EAX and then if the comparison passes, then we skip the block printing the error message. 0x400000 is the default base address that binaryninja assigns to our program but in this case the code is probably just referring to the actual number 0x400000. To fix it you need to right click on the __elf_header pointer and Undefine the data variable.

Bonus: Repeat the process with a C++ version of the same code

Analyze the C++ version of the XOR encryption program following the same process as above.

Question

What do you notice that is different about the c++ version?
