Lab 1: Debugging with GNU Debugger

Download Debug Program

First grab the debug versions of the programs we analyzed last week:

Learn how to use GDB commands

The help command

Start the program under gdb with:

gdb ./xor_c_debug.bin

Then, use the help command to have gdb tell you what types of commands you can run.

Question

What command is used for searching gdb’s help documentation for commands related to the users search term?

Setting Breakpoints

Breakpoints are the core functionality of a debugger. Use them to stop program execution at a certain point so that you can inspect registers and walk through each instruction step by step. You can set a breakpoint on a named object (like the main function) or an address (like *0xdeadbeef). If you don’t specify an argument, the break command will put a breakpoint at the current instruction.

Use the info addr command to find the address of main and then set a breakpoint there.

(gdb) info addr main
# ...
(gdb) break REPLACE_WITH_ADDRESS_OF_MAIN
# ...

Next, run the program with (you guessed it): the run command. This will execute instructions until the breakpoint you previously set is hit.

(gdb) run
# ...

Starting program: /home/student/Downloads/xor_c_debug.bin
fish: Unknown command. '/home/student/Downloads/xor_c_debug.bin' exists but is not an executable file.
-- or --
Starting program: /home/student/Downloads/xor_c_debug.bin
/bin/sh: 1: exec: /home/student/Downloads/xor_c_debug.bin: Permission denied

ls -l xor_c_debug.bin
# .rw-rw-r-- 23k student 27 Sep 10:45 xor_c_debug.bin
#    ^  ^  ^
#    ------------ Note how there are no 'x's in these positions. Run 'ls -l /bin/ls' to compare

chmod u+x xor_c_debug.bin

This will run the program until it hits a breakpoint or exits. In our case it stopped at main because that’s where we set our breakpoint. You might notice that because we have debugging information, gdb is able to display the values of arguments and variables from the program.

Use the print command to print the value of variables. Gdb also understands C-like syntax for accessing the properties of structs and data types. Use this to learn more about the argv argument for the main function:

(gdb) help print
# ...
(gdb) print argv
# ...
# Use the '*' to dereference a pointer just like in C programming
(gdb) print *argv
# Alternatively you can use:
(gdb) print argv[0]
# ...

Question

What is the type and address of the argv argument to the main function?

Note that argv points to a string. What is the address of this string?

Examining Memory

You can use the x command to examine the contents of memory with gdb. This is an extremely useful command and is absolutely worth reading the documentation on.

• Reference from VisualGdb
• GDB Official Manual (not as easy to read)

The command is also able to treat memory as various data types. For example, we can look at the as bytes (b) in hex (x). Examine the argv string with these options:

(gdb) x/32bx *argv

Or we might want to view it in terms of 4 byte (word sized) integers. To look at the same amount of overall bytes, we divide 8 by the size of the integer (4) to get 8. So we want to examine 8 words in decimal format.

(gdb) x/8wd *argv

Gdb will also display strings for you:

(gdb) x/s *argv

Question

What happens when you try increasing the number of strings you examine with the x command?

HINT: You should see something similar to when you run the env program in another terminal window.

Getting Program Information

Set another breakpoint at the printf function and use the continue command to continue execution until the program enters that function.

(gdb) break printf
(gdb) continue

Once there, let’s use the info command to learn a bunch of stuff about the program! It does a lot so be prepared to scroll back up in your terminal to see everything. Also make sure to use help info <subcommand> to learn more about the different options.

First let’s see what gdb can tell us about this file and the sections of the executable (as well as it’s shared libraries):

(gdb) info file
# ...

Question

What is the start address of the .text section for the xor_c_debug.bin program?

Next lets look at the shared libraries a little more:

(gdb) info sharedlibrary
# ...
(gdb) info proc mappings
# ...

The info proc mappings command shows you the memory regions mapped into virtual memory for the debugged process. Note that there is more than just the program and shared libraries there!

Question

What is the start and end address of the stack region?

Use q or ctrl+d to end the gdb session.

Install “GDB Enhanced Features” (GEF)

Follow the instructions at the gef github page to install it.

## using curl

$ bash -c "$(curl -fsSL https://gef.blah.cat/sh)"

set disassembly-flavor intel

Before we start debugging with the gef plugin for gdb, lets get generate some sample data for the xor program to encrypt.

python3 -c 'print("A"*4096, end="")' > input.txt

Now you can run gdb like before, setting a breakpoint at main and then running the program (this time with arguments).

student@hacs408e-vm> gdb ./xor_c_debug.bin
gef➤  break main
gef➤  run ./input.txt ./output.bin
# ...

After the first breakpoint, your session will look quite different! This is gef’s context command which gives you an overview of what is currently happening in the program. Your screen may be cut off if your window isn’t big enough.

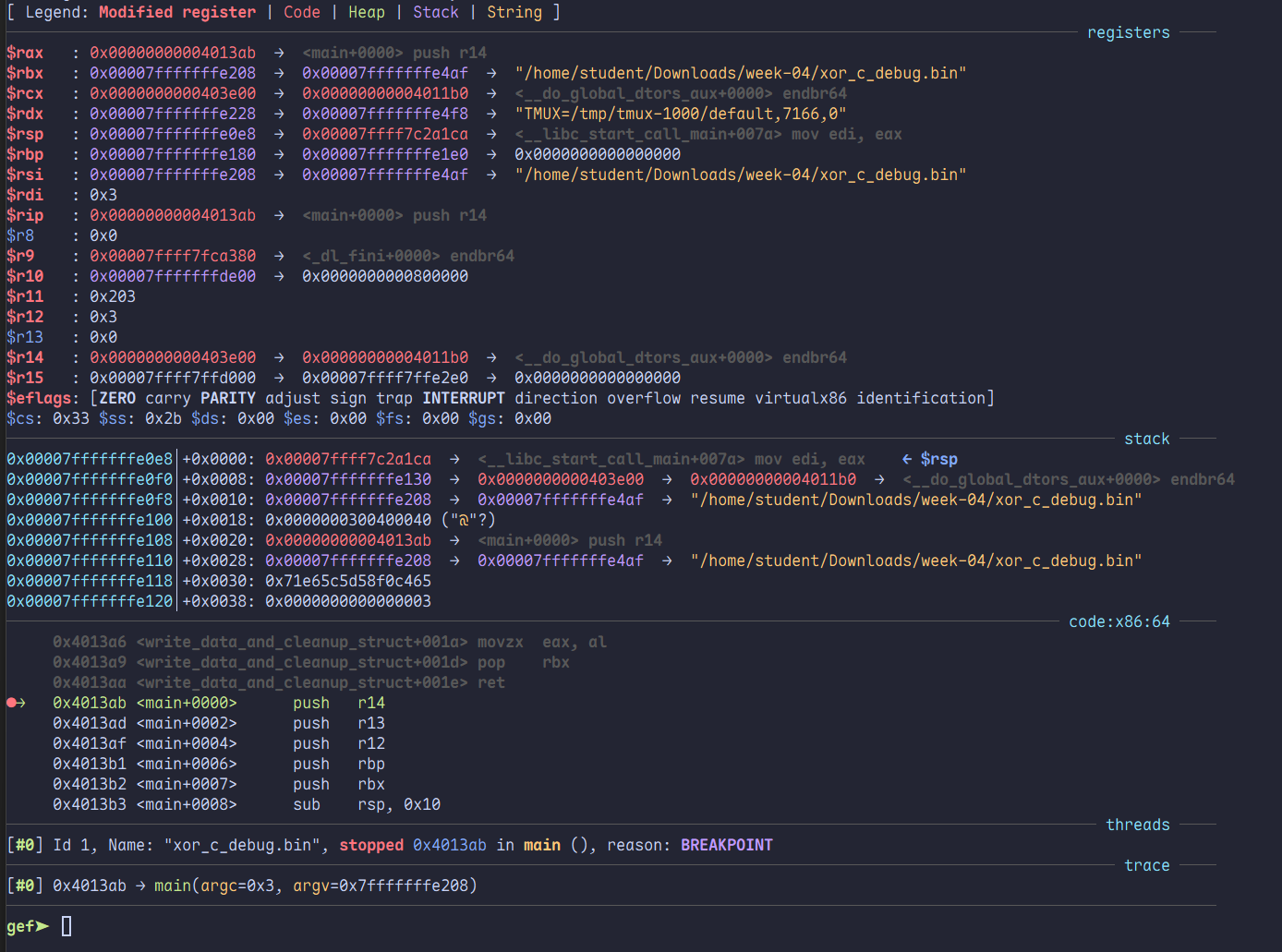

In the above screenshot, you can see the five main sections of the gef context:

1. The registers section shows the value of each register and attempts to dereference the value if it is a memory address.
2. The stack section shows the bytes of memory starting from the lowest point of the stack. Notice that the first address listed is the same as the value in $rsp.
3. The next region (code) shows the current instruction and the instructions around it.
4. The threads region shows the current thread executing. This matters more when looking at multi-threaded programs.
5. Final we have the trace section which shows you a backtrace of all the functions called that have led to the current point of execution.

Analyzing functions

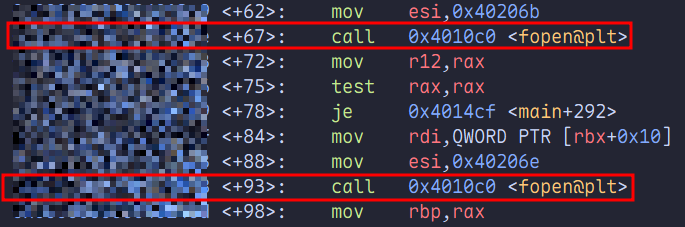

Use the disas function to disassemble the code for main(). Then scroll back up and find the addresses for each call to fopen() in the main function and set breakpoints there:

gef➤  disas main
gef➤  break <address>
gef➤  break <address_2>

Then once you have those set, run the program with the two input files it is expecting:

gef➤  run input.txt output.bin

When you get to the call instruction you will see gef’s context change. It should show the next instructions as the fopen code in the code section. Also it tries to help your analysis by guessing the function arguments for you.

Question

Based on what you think the arguments to the xor program are and what you know about fopen(), what is the calling convention for this function? HINT: Remember this is a 64-bit program.

• Documentation for the fopen() function
• x86 calling convention Wikipedia page

Next lets look at the return value of this function. Use the stepi command to “step instructions” into the fopen() function and then use the finish command to have gdb run the code until the function returns. Alternatively, you can use the stepover command provided by gef.

If the function succeeds, it returns a pointer to a FILE object according to the docs.

Question

What register is the return value stored in? What is the address of the FILE object?

gef➤  print *(FILE *)($rax)

Use the continue command to run the program until the next breakpoint is hit, or the end of the program. Whichever comes first.

Practice the above again by continuing past the second call to fopen and step forward a few more instructions. Use the info locals command to learn what gdb knows about local variables. Then use the vmmap command provided by GEF to figure out where the FILE structures are stored.

If you go too far or need to restart just use the run command with the input files again and it gdb will start the program over. (run input.txt output.bin)

gef➤  c
#
# Continuing.
#
# Breakpoint 3, 0x0000000000401408 in main (argc=<optimized out>, argv=0x7fffffffe208) at main.c:120
gef➤  stepover
gef➤  si
gef➤  si
gef➤  info locals
# ...
gef➤  vmmap
# ...

Question

What area of virtual memory contains the addresses of the file structs stored in the input_file and output_file variables?

Learn some more helpful GEF commands

GEF provides a bunch of helpful commands that make debugging much easier. Here are a few that are worth trying yourself:

The ctx or context command will print all the information gef knows about the current state of execution.

There is also the deref command which is what GEF uses to pretty-print memory regions in the context output with the strings and stuff nicely printed. You can use this command to look a larger portion of the stack frame (for example).

gef➤  deref -l 20 $rsp

You can also search for patterns in memory with the search-pattern or grep command. This can be very helpful if your trying to figure out where some data is that you’ve entered in the program. It understands the various sections referenced in the vmmap command, but see the documentation for more details about how to use it.

gef➤  help search-pattern
gef➤  grep student stack

Finally, to reinforce the linking/loading concepts learned in class, we’ll look at the got command. This will tell you the current state of the global offset table, which is where the addresses of external functions are stored. Normally when you call an external function, execution jumps to the .plt section which points to the offset in the .got section with the address of the function we want to store. From there execution will continue at the start of the external function.

If this is the first time the function is executed, the offset in the .got will point back to the .plt stub which has some code to tell the dynamic linker to resolve the address of the target function. Then the .got is updated and the code continues in the external function like normal. Please see this video for reference.

Use GEF’s got command to look at the external functions and see which one is resolved. Then use the info symbol <addr> command to see where the address points to.

gef➤  got
# ...
gef➤  info symbol 0x########

Question

Which function has been resolved by the loader so that it’s address has been updated in the global offset table?
