Lab 2: Malware Traffic Analysis

Overview

💡

In this lab you will use Wireshark to analyze real malware traffic and learn how to extract artifacts from packet captures. Often malware uses web traffic to reach back to a command and control (C2) server to download a second stage payload which is then executed after the victim machine has been exploited.

Goals:

  • Learn to use Wireshark to look for suspicious or malicious traffic.
  • Find and document important information about malicious network activity.
  • Extract binary artifacts from a packet capture.

Estimated Time: 45 Minutes

Note

The content of this lab comes from Unit42’s Wireshark workshop. Links to the sources and video walkthroughs can be found here:

Unit42 is a cybersecurity research team at Palo Alto Networks and they have ton of helpful resources on their site.

Instructions

For this exercise you will become a network analyst for Large Corporation™. There have been news reports and bulletins from CISA that the lokibot malware incidents have been on the rise. An employee at your work has reported suspicious behavior to the security team and they’ve given you (as the resident networking expert) some packet captures to look over.

Important

Here is a list of known indicators of the lokibot malware:

  • HTTP requests to urls ending in fre.php
  • A User Agent string of Mozilla/4.08
  • The string ckav.ru as well as the victim Host Name in the content of the HTTP request.

Download the PCAP files

pcaps.zip

Caution

These PCAP files contain artifacts from real malware. Do not run them on your personal laptop! To unlock the zip file when decompressing, the password is unit42

Find Victim Machine Info

Open the first PCAP and use the filter bar to limit the packets to dhcp traffic.

DHCP is how a host requests an ip address when joining a network and it can be useful for figuring out information about the local machine. Use the dropdown menu in the packet details section to find the relevant fields in the DHCP request packet.

Question
What is the victim machine’s requested IP address?

What is the victim machine’s hostname?

Next look at the Ethernet dropdown of the frame details for this packet. The first two bytes of the MAC address indicate the manufacturer of the machine and Wireshark will fill in the name for you. This can help you figure out what kind of PC the victim was using, and therefore information about what kind of malware you’re dealing with.

Question
What is the MAC address of the victim machine?

Finding IOCs

Click the basic label to filter for web traffic. Look for unencrypted HTTP traffic (this will be on port 80, colored green).

Question
What hostnames do you see?

Find an unencrypted HTTP packet going to www.google.com and follow the TCP stream. This is very suspicious since by default your browser should use HTTPS and google will redirect you to HTTPS.

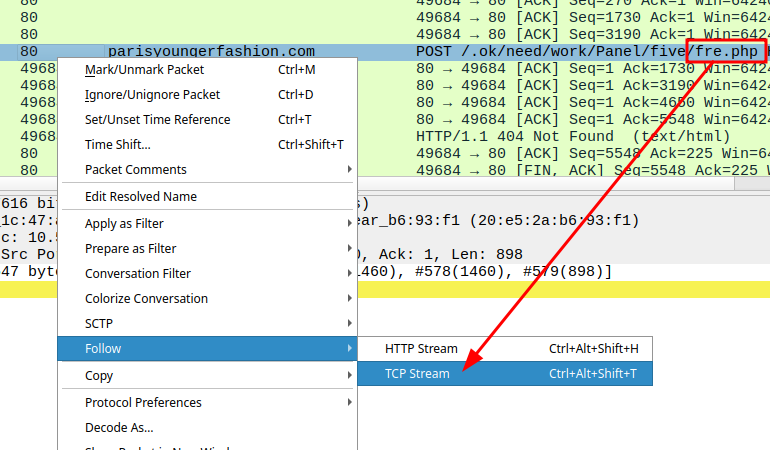

Click the basic web filter again. Follow the TCP stream of the frames sent to the parisyoungerfashion.com host.

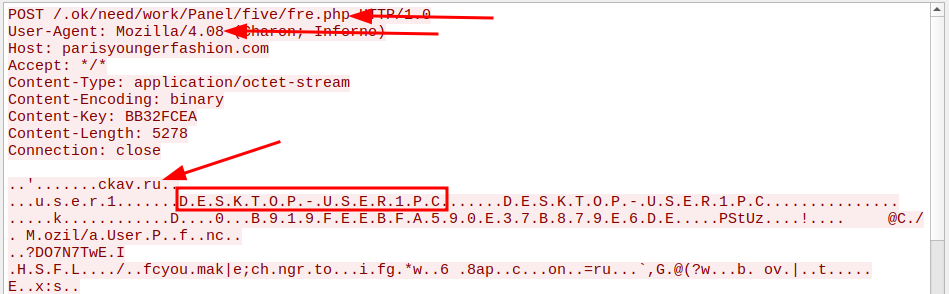

  1. Do you see any indicators of the lokibot malware mentioned above?

Malware Artifacts

Open the second PCAP (workshop-part-05-02.pcap), now and click the basic label to filter for web traffic.

Question
List a couple of domains that you see this time. Are any strange?

The person who reported the incident mentioned that they clicked a link in their email to download an invoice document before their computer started acting weird. Look for any web requests that were used to download a document file.

Question
What is the hostname for the site the document was downloaded from?

Are there any other files downloaded from this site?

Look for other HTTP requests to this malicious domain. Find another GET request which downloads a file. Presumably, this is a second stage payload for this malware.

Question
What type of file is it? Do you see the correct magic byes associated with this filetype?

Exporting Artifact from Wireshark

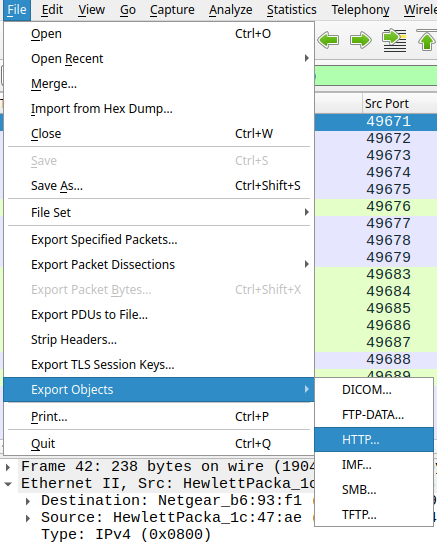

Use the Wireshark menu to navigate to File > Export Objects > HTTP to see the various files that Wireshark can extract from this PCAP.

Question
What are the SHA256 hashes of each of the files.

Inspecting HTTPS Certificates

By default if you’re capturing TLS (HTTPS) traffic, it is encrypted so you won’t be able to decrypt it and see the contents unless you have the private key. This is possible to intercept if you set up a Man-in-the-Middle proxy or if you control the server that serves HTTPS connections.

In this case thought, we’re going to analyze the packets to look for malicious traffic by finding non-standard looking TLS certificates.

Open up workshop-part-05-04.pcap from the unzipped files you extracted earlier and use the basic filter to see the various hostnames present in the capture.

Question
What are the IP address without a domain using HTTPS? Are any of them using a non-standard port?

Next lets find out what packet(s) contain the certificates. Most major web protocols are documented in “Request for Comments” (RFCs).

Search through the table of contents in the TLS specification and find the Handshake Protocol section of the appendix on Protocol Data Structures and Constant Values:

Question
In the HandshakeType enum, what number denotes the certificate handshake type?

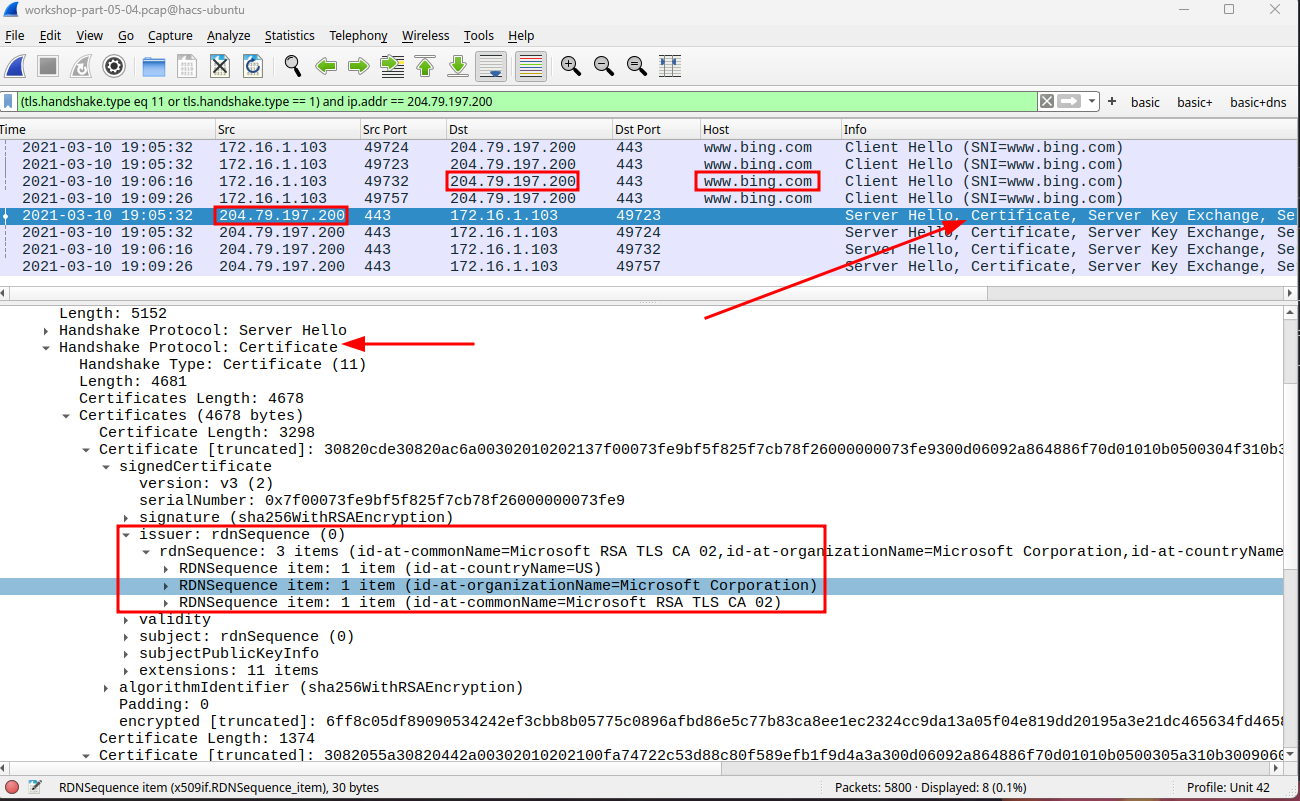

Use this number as a filter in Wireshark for the tls.handshake.type field. Then look for a packet where the src address is 204.79.197.200 which is the ip address for www.bing.com from this recording.

Wireshark Filter
ip.addr == 204.79.197.200 and tls.handshake.type == <ANSWER_TO_PREVIOUS_QUESTION>

Expand the dropdowns in the frame details pane until you see the RDNSequence.

  • Transport Layer Security
    • TLSv1.2 Record Layer: Handshake Protocol: Certificate
      • Handshake Protocol: Certificate
        • Certificates (### bytes)
          • Certificate
            • signedCertificate
              • issuer: rdnSecquence (0)
                • rdnSequence: # items (...)

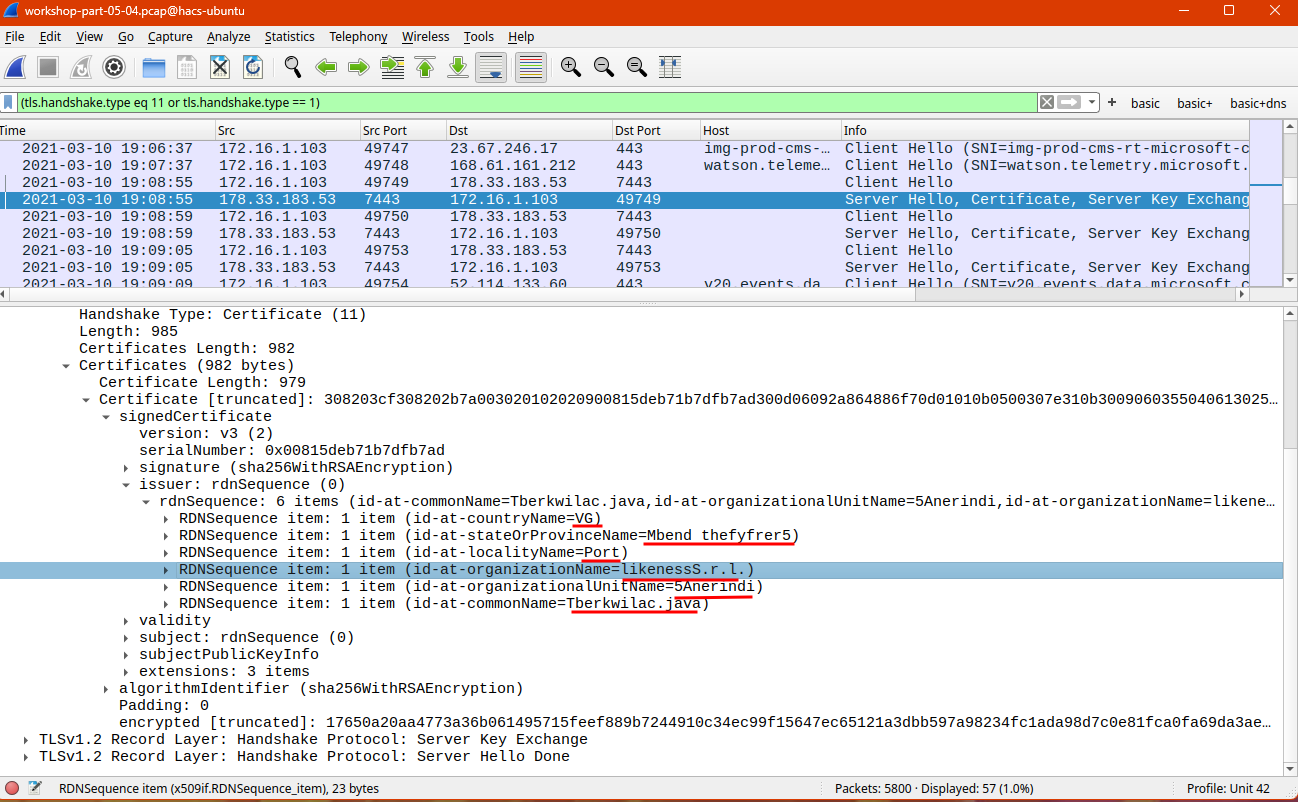

Compare this to the RDNSequence for one of the TLS packets coming from a malicious address you found above (such as 178.33.183.53).

Question
Describe how the values for a RDNSequence look for a normal certificate compared to a malicious one.

Solutions

Click to reveal…

Victim Machine Info

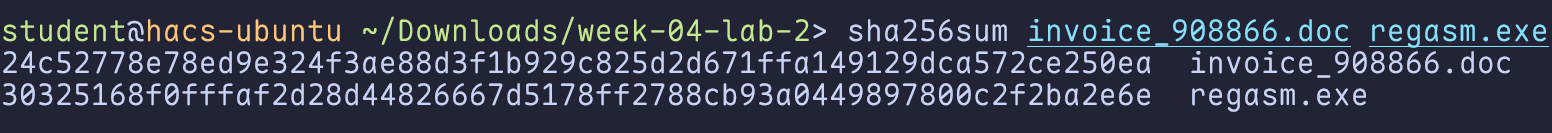

Export Objects Hashes

Malicious Certificates RDNSequence

Submission

📝
Submit a markdown file with any code you wrote and the answers to questions to ELMS.
