Wireshark Tutorial

Overview

💡

This guide will attempt to walk you through some of the basics of using Wireshark to capture and analyze network packets. By the end you should have some familiarity with how to navigate the user interface of Wireshark.

Goals:

Capture packets
Use Wireshark filters
Follow streams of data

Estimated Time: 45 Minutes

Instructions

Wireshark Profile

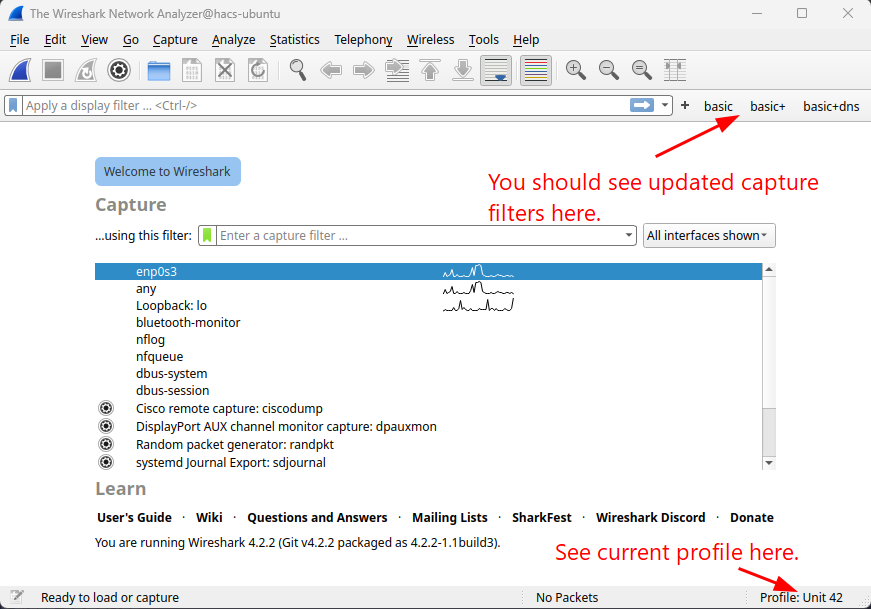

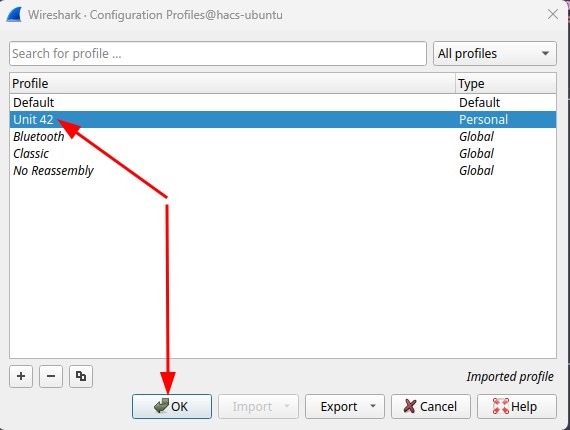

The screenshots in this walkthrough show a slightly modified version of Wireshark based on the setup from Part 2 of Unit42’s Wireshark Workshop. If you aren’t using the class VMs and want the same Wireshark profile, you can download and set it up like so:

Wireshark Profile

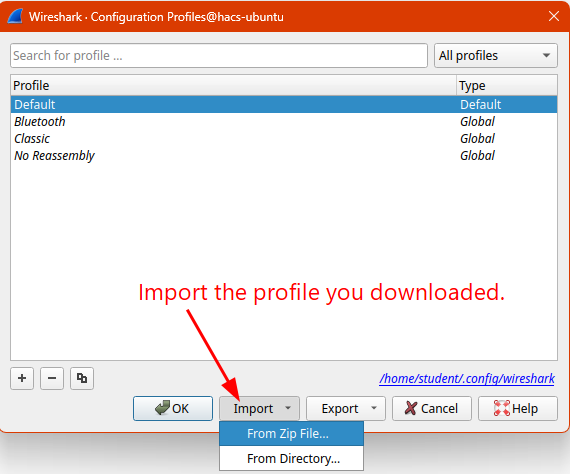

How to Import Profile to Wireshark

Take your first capture

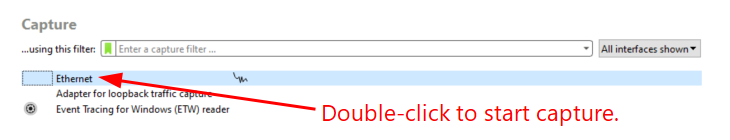

Start a packet capture by clicking the blue shark fin icon in the upper left part of the window. Alternatively, you can double click on the interface you want to capture from in the main window.

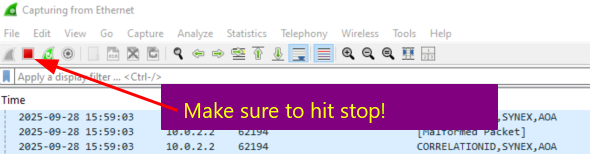

Let this go for a little bit until you see some packets, then stop the capture.

Fix missing headers

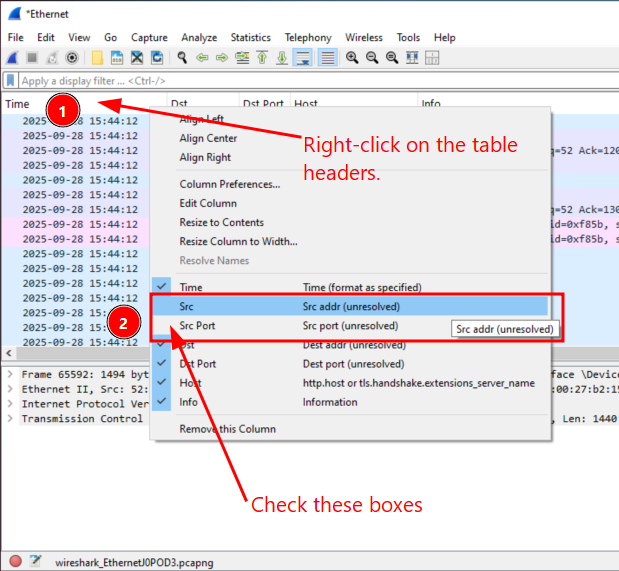

If missing Src and Src Port in the table headers of the default view, right-click one of the column names and use the context menu to add them back.

Review packet hierarchy

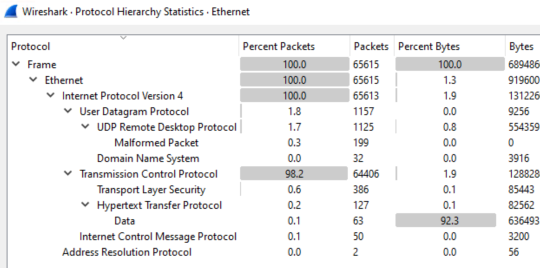

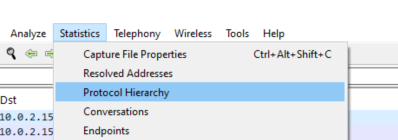

To get a sense of the different types of packets in this pcap, use the statistics menu to open the packet hierarchy.

Capture a PING command

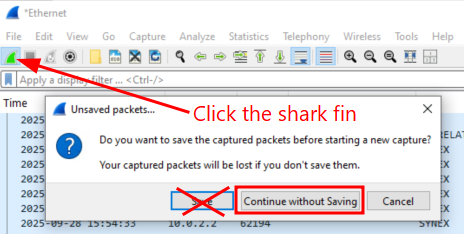

Start a new capture by pressing the shark fin and choose: Continue without Saving

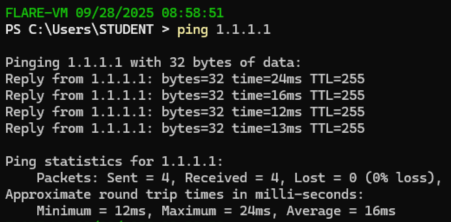

Then run ping 1.1.1.1 in a terminal.

After it finishes, don’t forget to stop the capture.

Filter traffic for ICMP packets

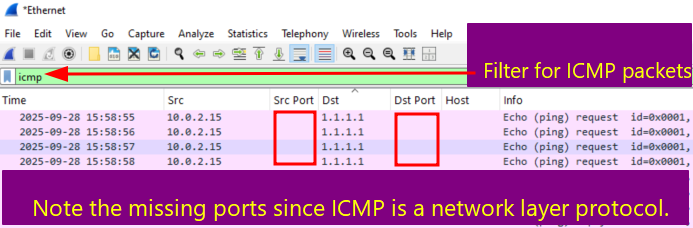

Use the filter bar at the top of the window to only show packets that match the filter you type. It will turn green once you have entered a valid filter. Use the filter icmp to only show our ping packets.

Capture some browsing data for `httpforever.com`

Next start a new capture and then use a browser to navigate to http://httpforever.com/.

Don’t forget to stop your capture after you open the webpage.

Review DNS requests

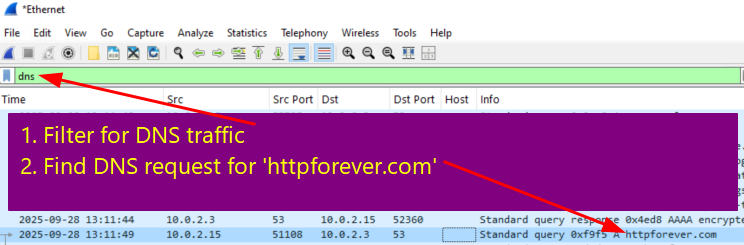

To start with analyzing this traffic, your browser needs to translate the website name into an IP address. The DNS protocol is used for that so use the filter bar to only show those types of packets.

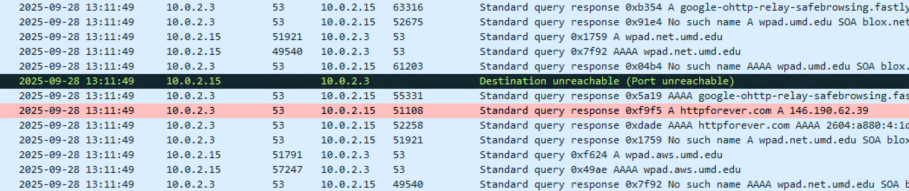

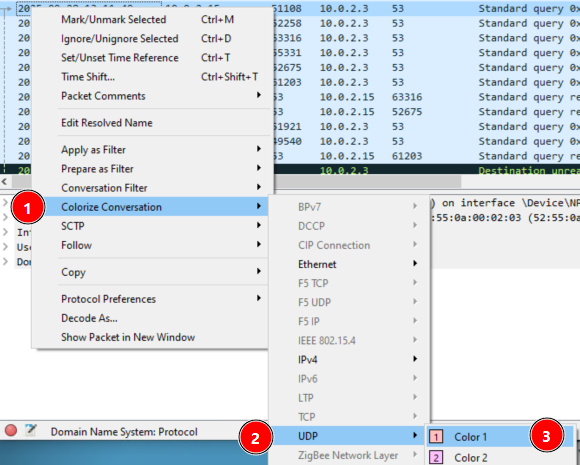

Once you’ve found the DNS request for httpforever.com, you’ll want to find the corresponding response packet. You can use the src and dst port to find it manually. Wireshark has a really nice color coding feature to help you match up conversations.

Follow the stream to see HTTP traffic

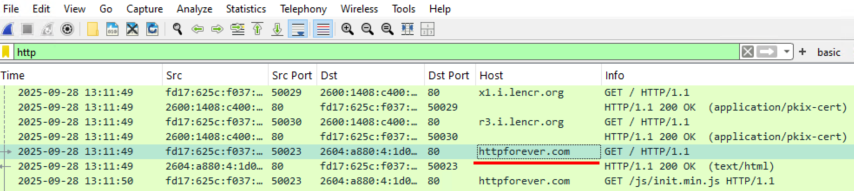

To see the actual content of your browsing session, filter for HTTP traffic.

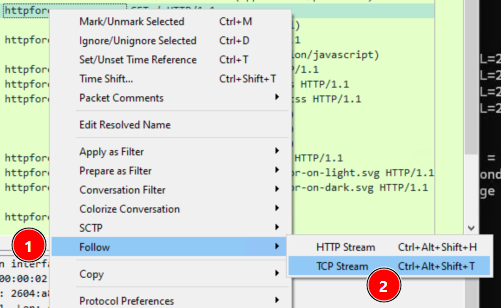

Find one of the tcp packets associated with browsing to httpforever.com by looking for the URL in the packet descriptions. Then right click on this packet and choose Follow > TCP Stream.

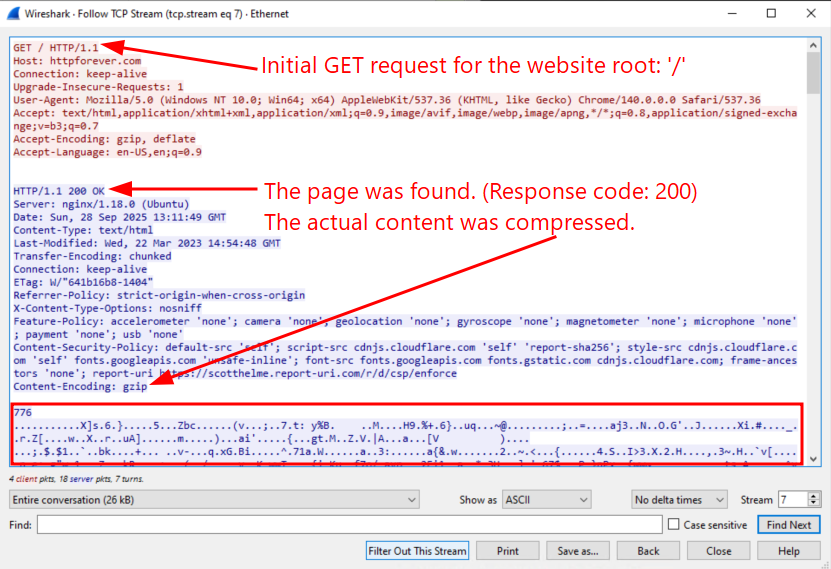

Note the HTTP headers, Request type, Response code and Content.

Walkthrough complete

Great work! You now know the basics of how to use Wireshark!
